Lenovo Thinkpad USB-C Dock

UK support · VAT invoice available Ask a question
OrbitBay condition information

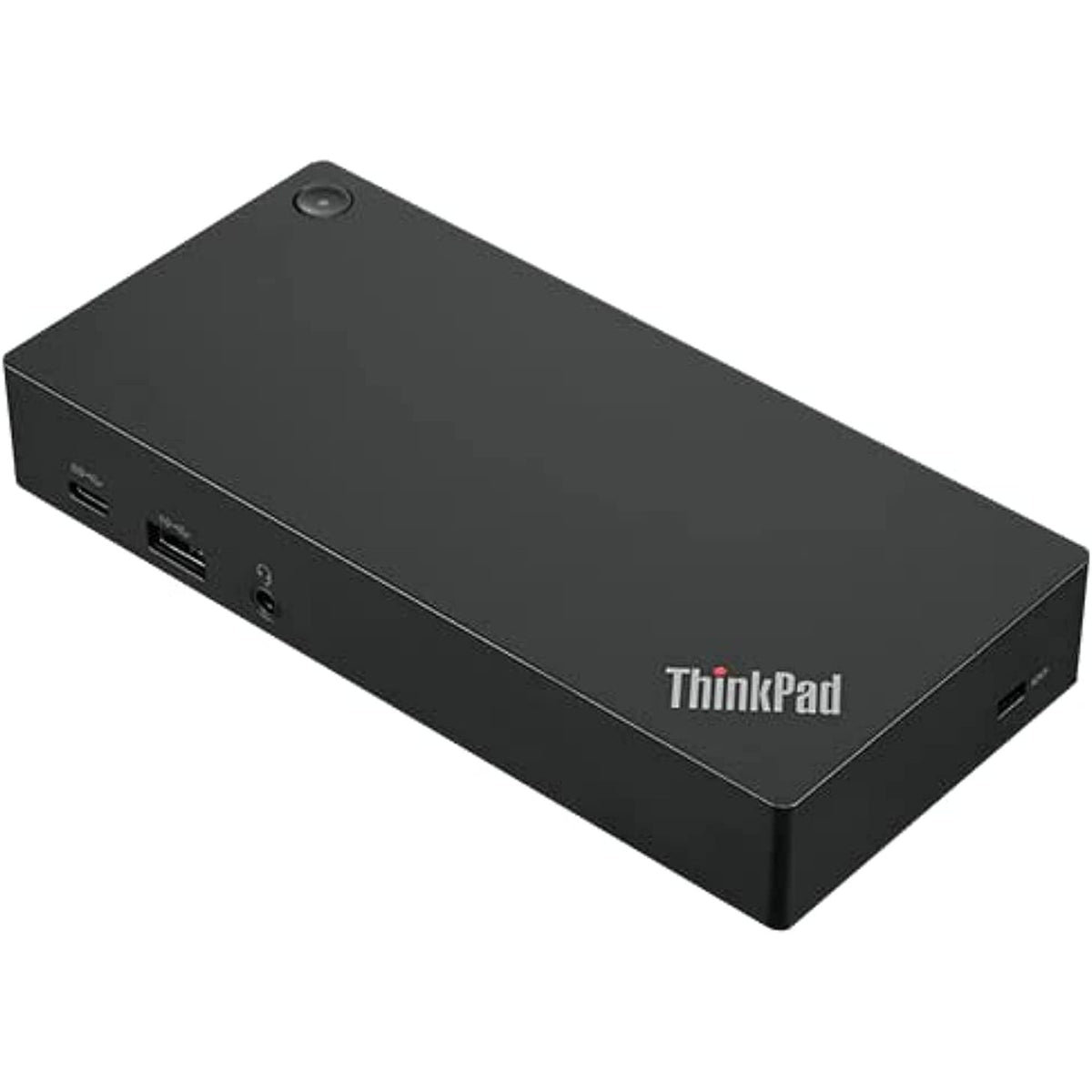

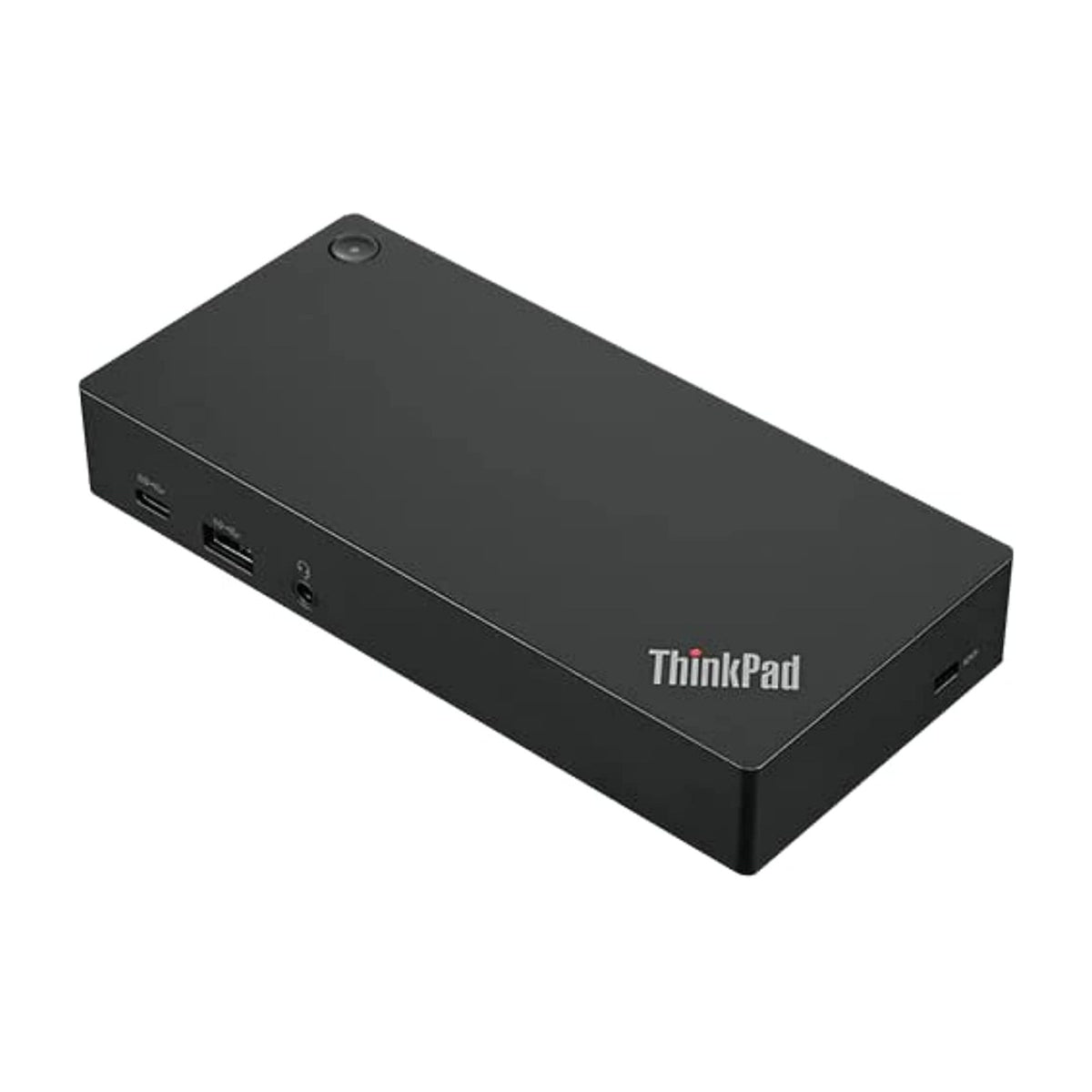

Lenovo ThinkPad USB-C Dock Gen 2 main product image Lenovo logo
4K Ultra HD Display
Black Colour
325 g Weight
ThinkPad T490 (20N2 · 20N3 · 20Q9 Compatibility
Windows 10 Supported systems
New Condition
View full details
Saved products

Your Wishlist

Wishlist items are saved on this browser and device.

Lenovo Thinkpad USB-C Dock

Compare the condition, packaging, price and applicable cover before choosing.
UK-based support VAT invoice available Ask a question
Clear condition detailsCondition, packaging and cover are shown before purchase.
Warranty & guaranteeApplicable cover is shown for the selected product and condition.
30-day returns policyEligibility and return costs depend on the reason for return.
Think. Pad USB-C Dock Gen 2 (40AS), next generation of USB-C one-cable universal docking solutions.
36 In Stock
Brand:
Lenovo
MPN:
40AS0090UK
EAN:
193124916392

About this item

  • One Connection, no limitations: Think of all the time you'd save if you could connect all your peripherals at once, transfer USB data at lightning - fast 10Gbps speeds, and have access to a stable, stress - free wired network connection.
  • Jaw-dropping 4K or multiple displays *: the days of being limited by your notebook's capabilities are over. Now you can experience vivide 4K on a single screen or take multitasking to the next level with Multi displays.
  • Ready for your command: Ideal for being the centrerpiece of your workspace. Completely control your ThinkPad systems with PXE Boot, System Wake-on-LAN. It also supports passing ThinkPad MAC address through the dock.
  • Dock has the ability to support DisplayPort 1.4 and HDMI 2.0 for max 1 x 4K@60Hz, but the real video output would depend on the system's output.
  • Wired.
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C.
£139.99 In stock
Clear condition detailsCondition, packaging and cover are shown before purchase.
Warranty & guaranteeApplicable cover is shown for the selected product and condition.
30-day returns policySee the Returns Policy for eligibility, costs and timescales.
UK-based supportHelp before and after your purchase.
Lenovo product guide

Explore the Thinkpad USB-C Dock

Key features, manufacturer-supplied product imagery, product insights and detailed technical information.

Product data reviewed by OrbitBay Manufacturer names, logos, media and specifications are used for product identification and information. OrbitBay is an independent retailer; their use does not imply manufacturer endorsement or affiliation.
About this product

Product overview

Think. Pad USB-C Dock Gen 2 (40AS), next generation of USB-C one-cable universal docking solutions. Supports vivid 4K displays or multiple 1080p screens, charge your notebook, connect legacy USB peripherals, wired networks and rapidly charge your mobile devices.

Complete specification

Technical specifications

Open a category to review the detailed manufacturer specification.

Ports & interfaces 12 details
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
2
Microphone in
No
Combo headphone/mic port
Yes
Headphone connectivity
3.5 mm
Network 4 details
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN ready
Yes
Performance 11 details
Card reader integrated
No
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3
Cable lock slot
Yes
Product colour
Black
Plug and Play
Yes
Brand compatibility
Lenovo
Compatibility
ThinkPad T490 (20N2, 20N3, 20Q9, 20QH), ThinkPad T590 (20N4, 20N5), ThinkPad X280 (20KE,20KF), ThinkPad T480 (20L5,20L6), ThinkPad X1 Carbon 6th (20KH, 20KG), ThinkPad X270 (20HM, 20HN, 20K5, 20K6), ThinkPad T480s (20L7,20L8)
Certification
FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM
Power 4 details
Power source type
DC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply
90 W
Software 1 detail
Windows operating systems supported
Windows 10, Windows 7
Weight & dimensions 4 details
Width
171 mm
Depth
80 mm
Height
30.8 mm
Weight
325 g

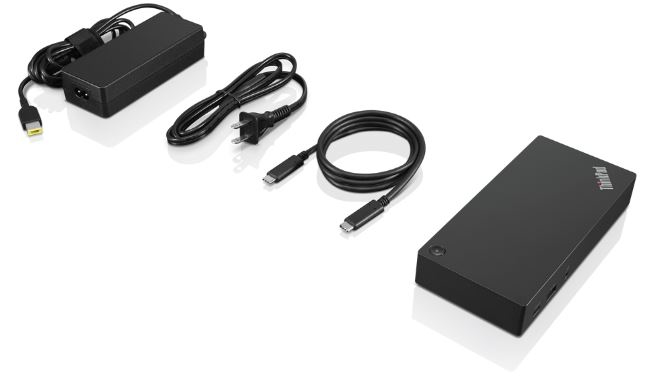

Packaging content 3 details
Cables included
AC, USB Type-C
AC adapter included
Yes
Manual
Yes
Manufacturer resources

Video, guides and product documents

Manufacturer-supplied media and documentation for a more informed purchase.

User manualUser manualOpen document ↗ Product brochureBrochure Lenovo 40AS0090UKOpen document ↗ OrbitBay technical dataComplete product specificationDownload PDF ↗
